Renson

Renson Healthbox 3.0 fan unit

Regular price €1.103,17 EUR
Regular price Sale price €1.103,17 EUR
Tax included. Shipping calculated at checkout.
Description

Renson Healthbox® 3.0 is the smart and quiet solution for healthy indoor air. Are you planning to build or renovate? Are you dreaming of owning your own house or apartment? Then you definitely need a Healthbox® 3.0 ventilation system. The Healthbox® 3.0 demand-controlled ventilation system is a quiet and energy-efficient solution. And thanks to the various configuration options, you can take full advantage of the energy efficiency benefits for all types of homes.

    Technical specifications
    Type of ventilation
    Controlled mechanical exhaust ventilation
    (Max.) Ventilation flow rate
    475 m3/h (at 135 Pa)
    430 m3/h (at 200 Pa)
    Fan specifications: see technical drawings
    Power supply voltage
    230 VAC ± 10% (50 Hz, 60 Hz)
    Power cord included (length: ± 2 m)
    Rated capacity of the ventilation unit
    Maximum flow rate 150 m3/h
    28 watts
    Maximum flow rate 225 m3/h
    35 watts
    Maximum flow rate 325 m3/h
    53 watts
    Maximum flow rate 400 m3/h
    80 watts
    Maximum flow rate 475 m3/h
    85 watts
    See graphs

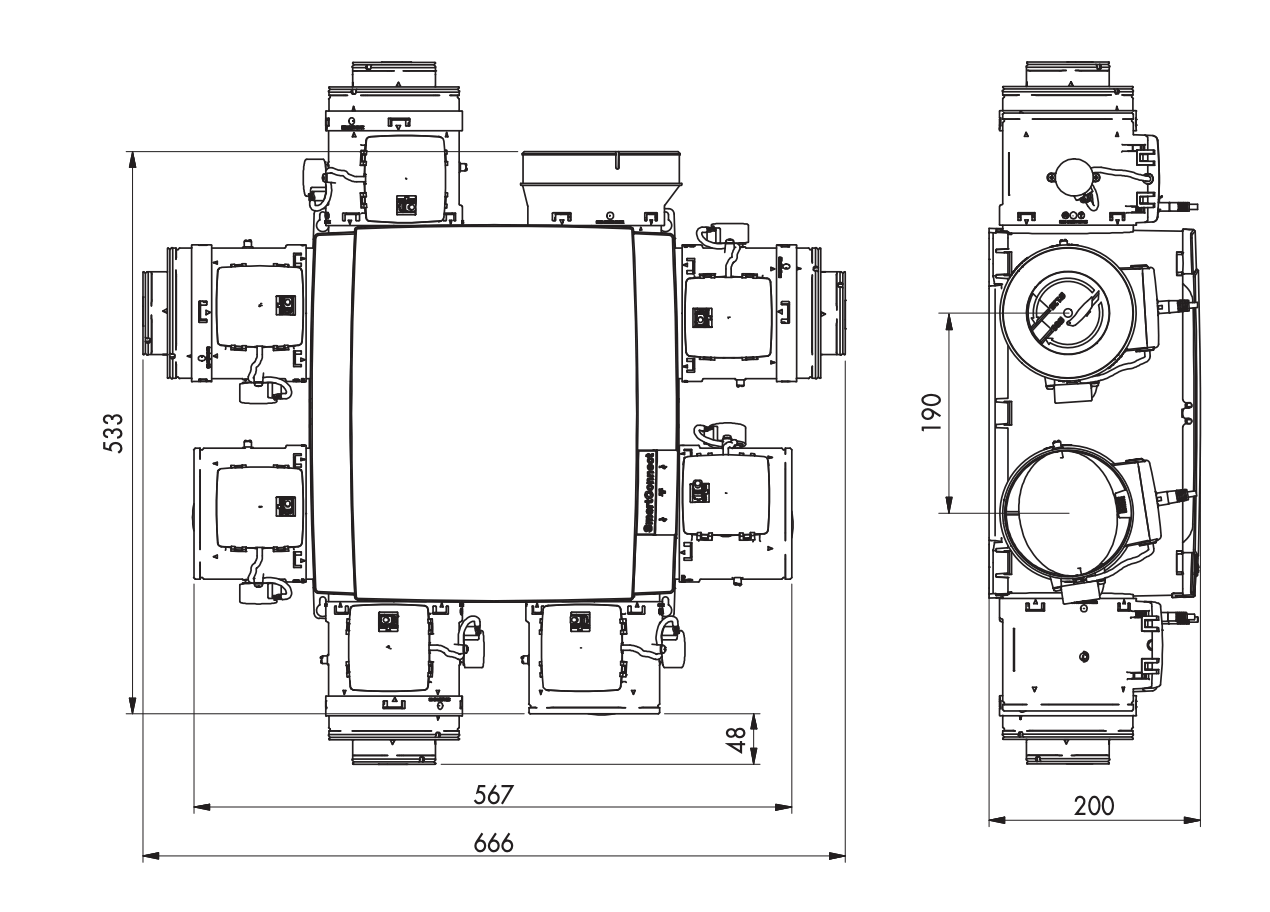

    Dimensions
    Ventilation unit without control valves
    390 x 443 x 200 mm (LxWxH)
    Ventilation unit with control valves
    567 x 567 x 200 mm (LxWxH)
    See technical drawings
    Weight
    Ventilation unit without control valves
    2600 g
    Control valve + adapter
    240 g + 65 g
    Connection to inlet duct
    Choice of adapter: 80 and/or 125 mm
    Connection version for extraction channel
    Choice of adapter: 125 or 150 mm (160 mm dd. with additional ring)
    Ventilation
    Extremely quiet and energy-efficient EC motor with 180 mm dia. Impeller. Active variable pressure control: in each case, the lowest possible pressure level is set to match the required extraction flow rates.
    Maximum ventilation operating pressure
    350 Pa
    – Recommended operating pressure at designed flow rate: ≤ 200 Pa
    – Target value for very efficient operating pressure at design flow rate (see TV No 258): ≤ 100 Pa
    Calibration reading
    Using the user app, install the software & the Renson My-Lio-professional web portal
    Automatic calibration of ventilation flow rate (patented)
    Works in 2 consecutive stages:
    – Step 1: Pressure drop readings taken automatically in all ducts
    – Step 2: Air distribution valve positions calculated automatically
    Automatic calibration time
    – 2 -5 control valve calibration: up to ± 3 minutes
    – Calibration of 6 to 8 control valves: up to ± 5 minutes
    – Calibration of control valves 9 to 11: up to ± 6 minutes
    Maximum number of extraction connection points
    Basic forms
    7
    Use of valve manifold
    11 (under a few restrictive conditions)
    Valve manifold
    1 or 2 valve manifolds to be connected to the fan unit with 1 to 3 control valves to be connected to each valve manifold.
    The valve manifold can also be connected remotely from the fan unit.
    Electrical connection (UTP cable Cat 5e, wire gauge 24AWG, 30 metres max.).
    Connections
    – 1 Ethernet connection
    – 2 x USB connection (USB socket for Wi-Fi included)
    – Inputs: 3 x DIGITAL, 1 x ANALOG (0-10 V)
    Sound power level (LWA) (Reference: Ecodesign)
    Qmax 150m3/h: 32 dB(A)
    Qmax 225m3/h: 34 dB(A)
    Qmax 325m3/h: 39 dB(A)
    Qmax 400m3/h: 43 dB(A)
    Qmax 475m3/h: 47dB(A)
    Cooling function
    Temporary nominal ventilation (= demand control deactivated) at times when cooling demand is determined (= > optimum shading factors)
