Climtec

Heat recovery unit Climtec RD-125 Standard

Regular price €618,55 EUR
Regular price Sale price €618,55 EUR
Tax included. Shipping calculated at checkout.
Description

Ventilation with heat recovery or heat recovery ventilator, which effectively eliminates damp, airlessness and the problems they cause - mold, mildew, poor well-being, etc. For use in apartments, private houses, small offices, gyms, pre-schools. Energy efficient, quiet and quick to install.

If you are constantly plagued by problems such as mold on walls and furniture, condensation or foggy windows, constant headaches and allergies, then it is very likely that your home is suffering from ventilation problems.

The Climtec Heat recovery unit is the solution! It is a special ventilation device that provides fresh and clean indoor air, inhibits and prevents the growth of mold, protects the building from deterioration, improves well-being and productivity. In addition, this type of ventilation is particularly energy efficient and can be installed in 1-2 hours.

The Climtec can be used in a wide range of rooms:

  • In apartments
  • Homes
  • In schools
  • Nurseries
  • Cafes and restaurants
  • Pools and gyms
  • Offices
  • In factories

The Climtec device is installed in the wall of the house that connects the ventilated space to the outside. A diamond drill is used to drill a precise hole in the wall without damaging the interior or exterior finishes. The heat revocery unit is inserted and the power supply and control are connected.

The unit removes the "exhaled" air from the room through an aluminum heat exchanger while filling the room with fresh and clean air from outside. The device heats the air coming in from outside in cold weather and cools the air in warm weather. The air flows in and out at the same time, but the two air streams do not mix because they move through separate ducts. Climtec thus achieves energy recovery efficiencies of up to 87%. The air flows can be completely shut off if required. A valve designed to seal off the air flows prevents wind, draughts and noise from outside and prevents the heat recovery system from freezing at very low temperatures.

The heat exchanger in the device is aluminum, non-oxidising, non-respiratory and operates over a wide temperature range, while the oxide film prevents the growth of fungi and foam-reactive bacteria. The unique shape of the motor wings (12-16 blades) doubles the operating efficiency. G3, G4 or carbon filters trap dust, exhaust gases and unpleasant odors. The unit has the lowest noise level on the market.

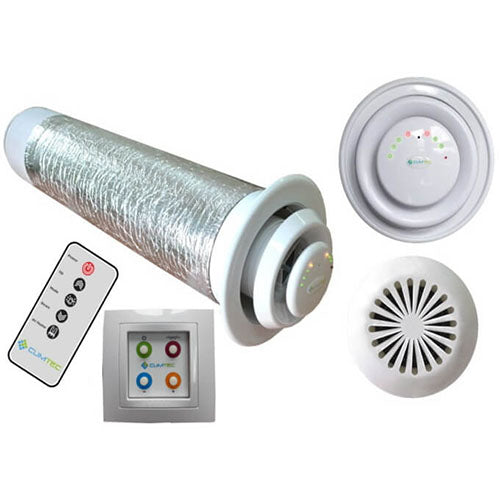

The unit has a stationary control or remote control.

Climtec branded heat recovery units have all necessary quality, energy efficiency and safety certificates.

To determine the exact model (capacity) and quantity of units required for your premises, the size of the room and the number of occupants must be taken into account.

 Dimensions, cm (L x W x H): 93 x 23.5 x 23.5
Weight, g: 2920
Technical Specifications
Air exchange rates
Recommended room area per system
up to 25 m2, up to 3 people
Intake at maximum capacity
60 m3 / h
Exhaust at maximum capacity
60 m3 / h
Intake at minimum capacity
25 m3 / h
Exhaust at minimum capacity
25 m3 / h
Heat recovery efficiency
up to 93%
Air intake and exhaust occur simultaneously without mixing the airflows.

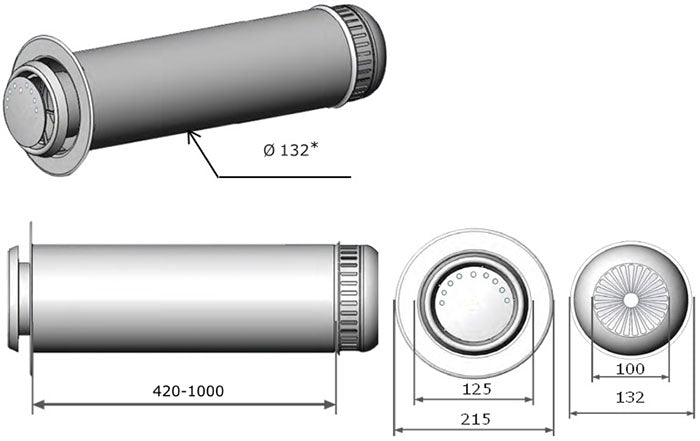

Dimensions and Weight
Module length
450-1000 mm
Module diameter without thermal insulation
125 mm
Mounting hole diameter
142 mm
Weight
2.2kg
Other parameters
Power Consumption MIN / MAX
3.5/7 W / h
Power Consumption for Heating
50 watts / hour
Noise Level
up to 38 decibels
Voltage
220-230 V
Benefits
Management
Stationary or remote control
Power Management Modes
25% 50% 75% 100%
Flow shut-off mechanism
Automatic (simultaneous on/off)
European Quality Certificate CE.
2-year warranty.
