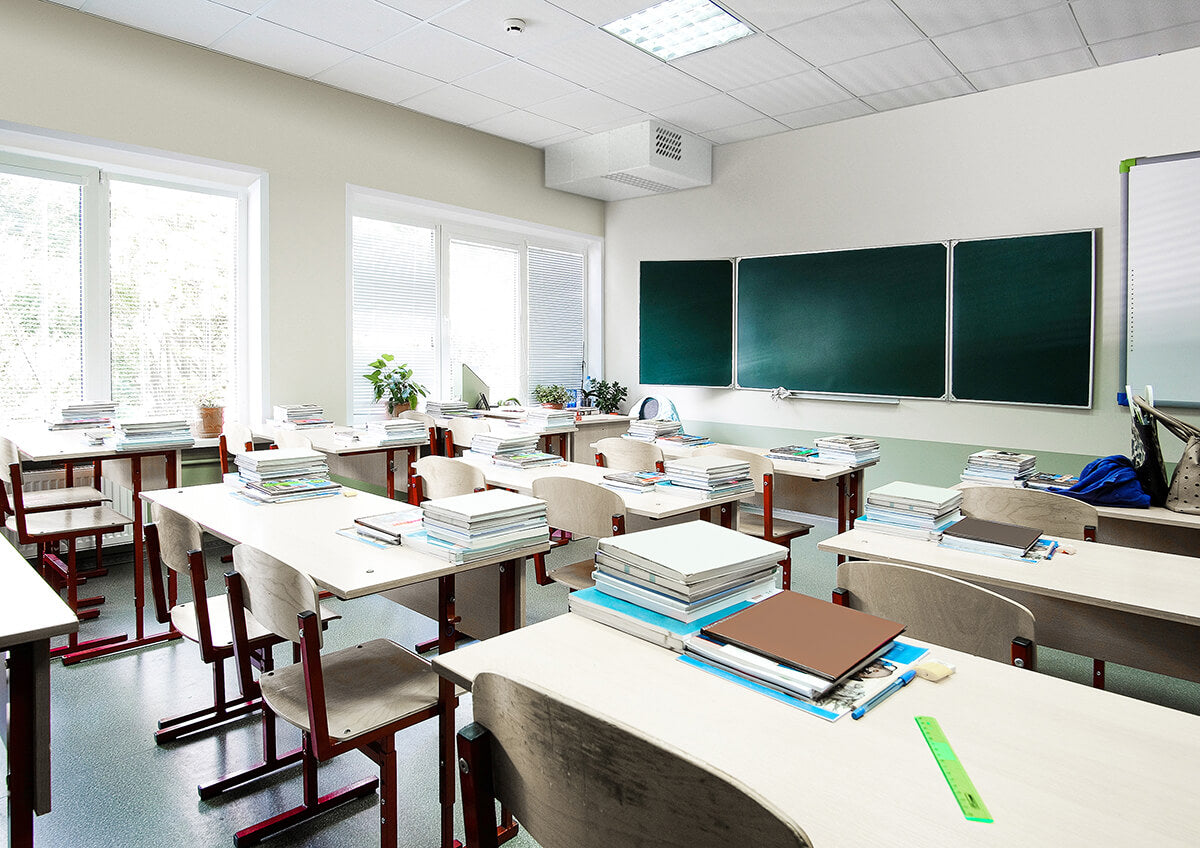

  • Rekuperators Helty Flow 600 skolā, klasē
1 of 2

Helty

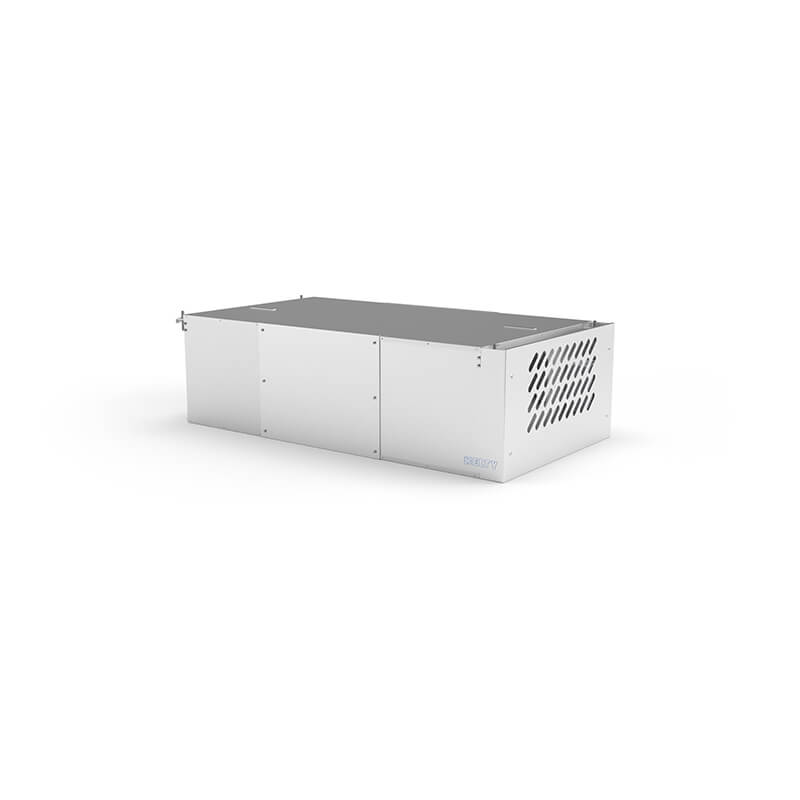

Heat recovery unit HELTY HRV Flow 600 Standard

Regular price €3.900,00 EUR
Regular price Sale price €3.900,00 EUR
Tax included. Shipping calculated at checkout.
Description

HELTY Decentralized HRV for schools and public spaces - Flow 600 Standard.

A decentralized dual-flow ventilation system tailored for medium to high occupancy spaces like offices and classrooms. With a sleek modern design, it's adaptable and available in a Steel version, featuring a white painted steel cover. This model offers adjustable air circulation, with flow rates ranging from 250 m3/h to 600 m3/h.

  1. Ceiling installation;
  2. Pure air with the F9 purifying filter;
  3. Heat recovery efficiency 82%
  4. 35 dB(A) Sound pressure

Suitable for installation on ceilings or walls in educational institutions and communal areas: guaranteeing healthy air and energy savings. Designed for continuous air exchange and sanitation of the air in public spaces:

  • Offices,
  • Classrooms,
  • Meeting rooms,
  • Medical institutions,
  • Kindergartens,
  • Laboratories,
  • etc.

The positive effects of HRV in classrooms and offices

  • A comfortable environment with stable temperature and well-managed humidity levels helps boost physical comfort and enhances learning.
  • Lowering excess CO2 levels prevents drowsiness, fatigue, and headaches, leading to improved concentration and attention.
  • Removing volatile organic compounds, fine dust, and biological pollutants (such as mold) through dispersal and extraction reduces the risks of allergies and respiratory issues.

An easy-to-operate ventilation system, perfect for schools.

Flow 600 ventilation system guarantee excellent air filtration with the included G3+F9 filter unit. Easy to design and install, it can be ceiling-mounted or wall-mounted, utilizing a specialized pipe covering enclosure that allows for intake/extraction ports on both the right and left sides. Installation only requires 2x 200 mm cores in the perimeter wall, or alternatively, 4x 100 mm cores.

Efficiency and energy savings

With 6 flow rate adjustments, spanning from 250 m3/h to 600 m3/h, the Flow 600 enables efficient management of air exchange in communal areas, facilitating energy savings with its high heat recovery capability. Equipped with a cross-flow enthalpy heat exchanger, it achieves a thermal recovery efficiency of up to 82%, eliminating the requirement for condensate drainage.

Available in 2 versions (Standard, Pure)

The Pure version adds a hygrometric sensor, as well as CO2 and VOC sensors, automatically regulating air exchange according to the specific needs of the ventilated environment.

Technical specification
Air exchange rates
Recommended room space per system
up to 100 m2
Airflow
250/300/350/450/550/600 m3/h
Airflow modes
night + 4 stages + hyperventilation
Heat exchanger
enthalpy with cross-flow
Heat recovery efficiency
up to 82%
Power Consumption
30-220 W
Energy class(cooling / temperature / heating)
A+ / A / E
Sound pressure level
35/39/43/47,4/52,5/55 dB(A)
Management System (Optional)*
Air Guard App, Built-in control panel, Web App HCloud
Filters
G3+F9 / G3
Filter replacement alert
Humidity sensor
-
Air Guard App
Optional
CO2 and VOC sensor
-
Dimensions (W x H x D)
1374 x 395 x 706 mm
Core-drilled holes
2xØ200 mm / 4xØ100 mm
Weight
55 kg
European Quality Certificate CE
2-year warranty
