Heat recovery unit Aerauliqa Quantum HR 100

Description

Heat recovery unit Aerauliqa Quantum HR 100 is a compact and energy-efficient decentralized ventilation unit with a ceramic regenerative heat exchanger. Designed for single-room applications, it ensures continuous air exchange and significantly reduces heat loss. Ideal for bedrooms, living rooms, or renovation projects where central ducting is not feasible.

The unit operates in an alternating “push-pull” cycle approximately every 70 seconds, achieving up to 74% thermal efficiency. With its energy-saving EC motor, user-removable dust filter, and sleek design, it improves indoor air quality while maintaining very low noise levels. Multiple units can be synchronized to ensure balanced airflow and optimal performance.

Energy saving

Preheated fresh air and continuous ventilation reduce the need for additional heating, improving the building's overall energy efficiency. The EC brushless motor ensures minimal electricity consumption during operation.

Improved indoor air quality

A well-designed mechanical ventilation system like Quantum HR helps maintain clean and healthy indoor air at all times. The built-in filter ensures that incoming air is effectively cleaned before entering the living space.

Features

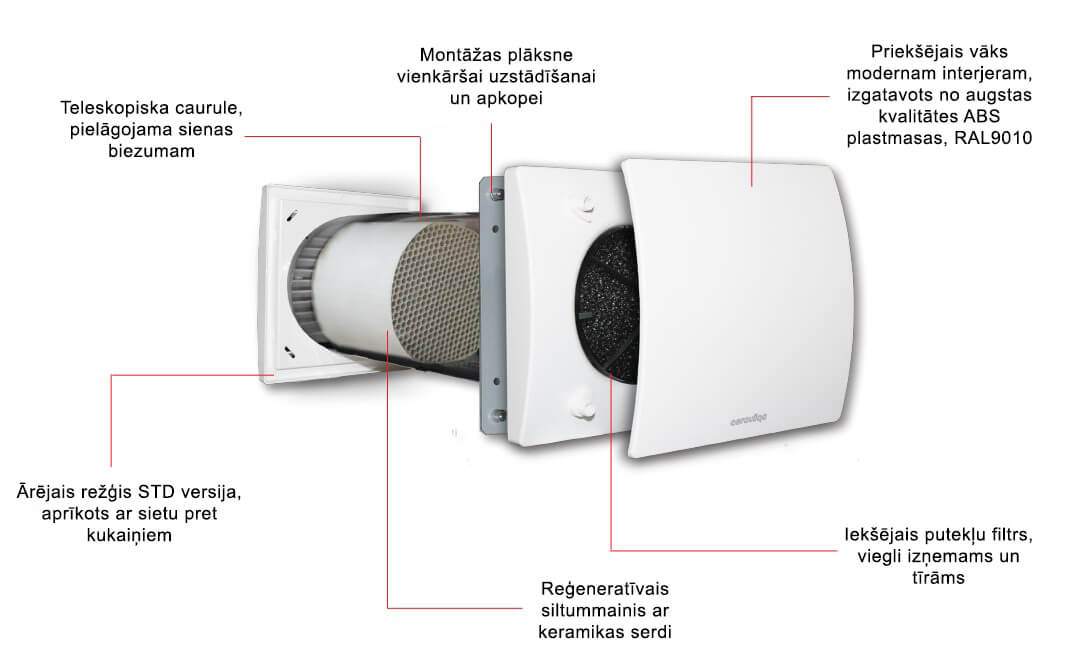

• Push-pull operation with ceramic regenerative heat exchanger.
• High thermal efficiency: up to 74%.
• EC motor with ultra-low energy consumption (1.2 – 2.6 W).
• Quiet performance: sound pressure from only 10 dB(A) at 3 m.
• Three fan speeds: 10 / 15 / 25 m³/h.
• Integrated "Free cooling" mode with LED indicator.
• Front panel can be removed without tools for easy cleaning.
• User-removable internal dust filter for simplified maintenance.
• External grille with anti-insect net and water drip guard.

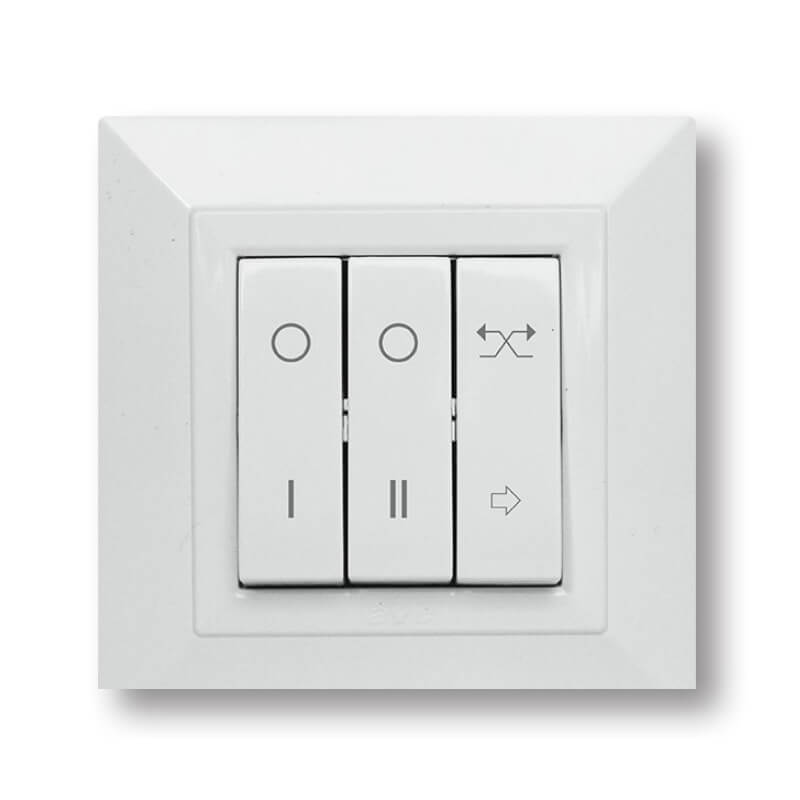

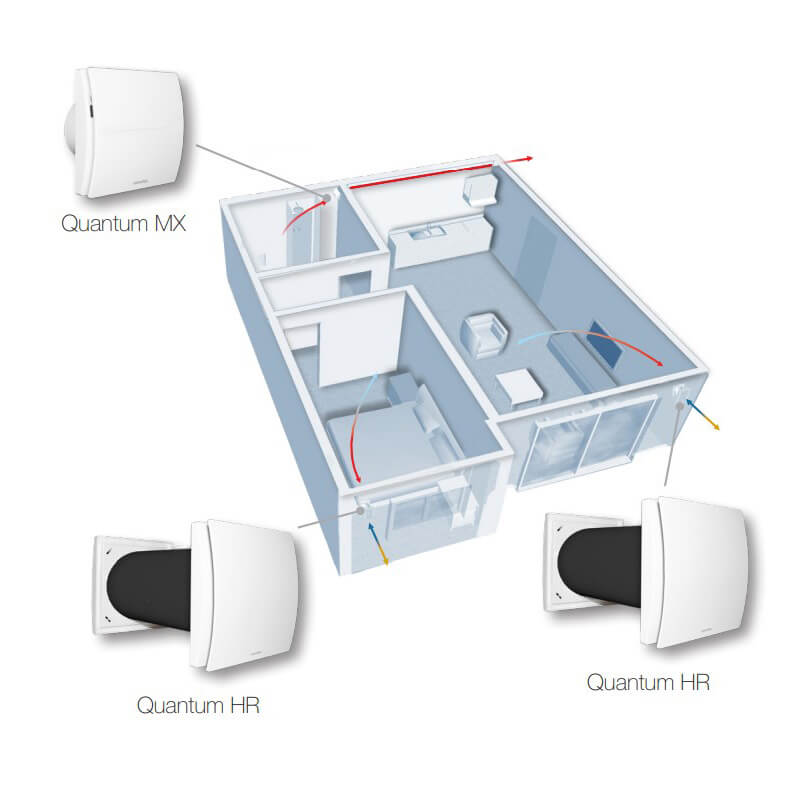

• Control panel for managing up to 8 units simultaneously.

Information from manufacturer`s website>

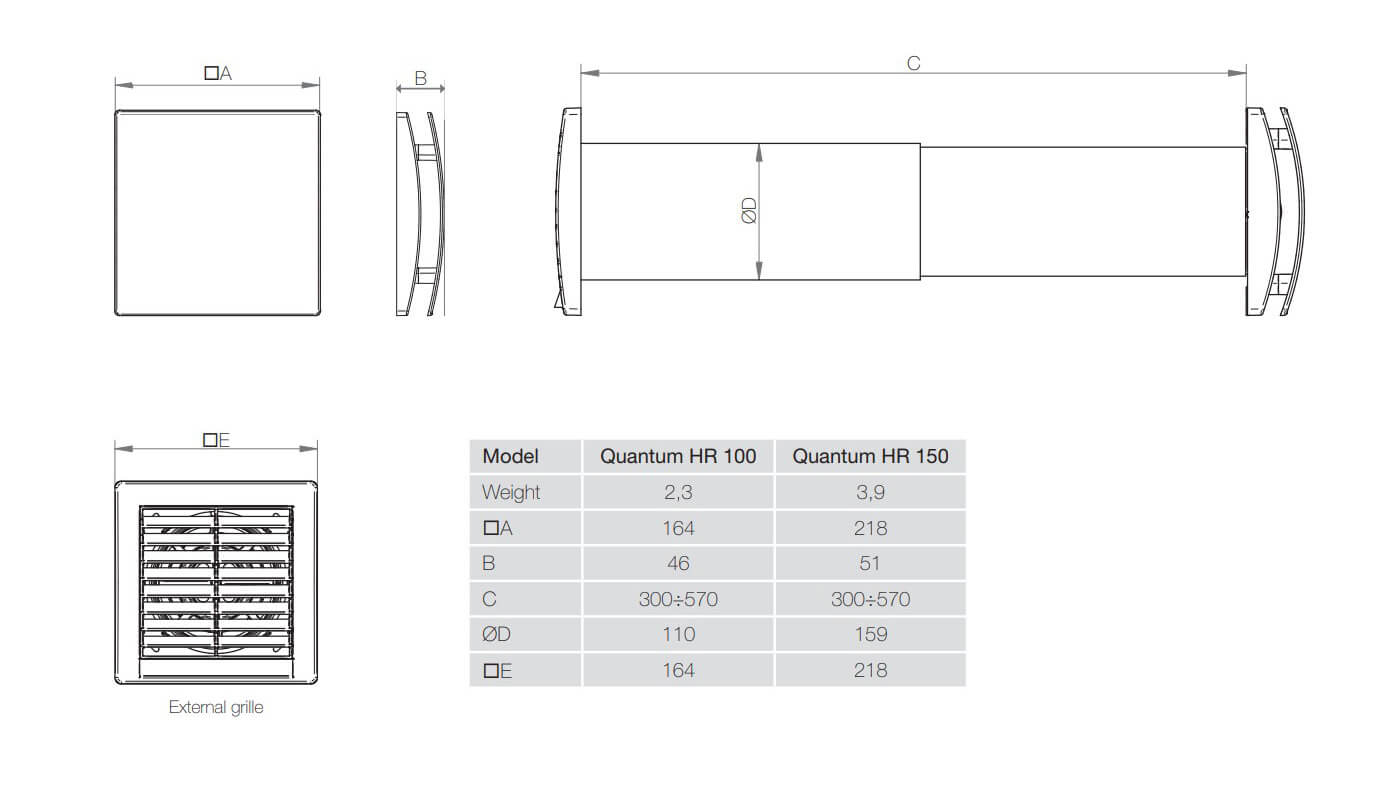

Technical specification
