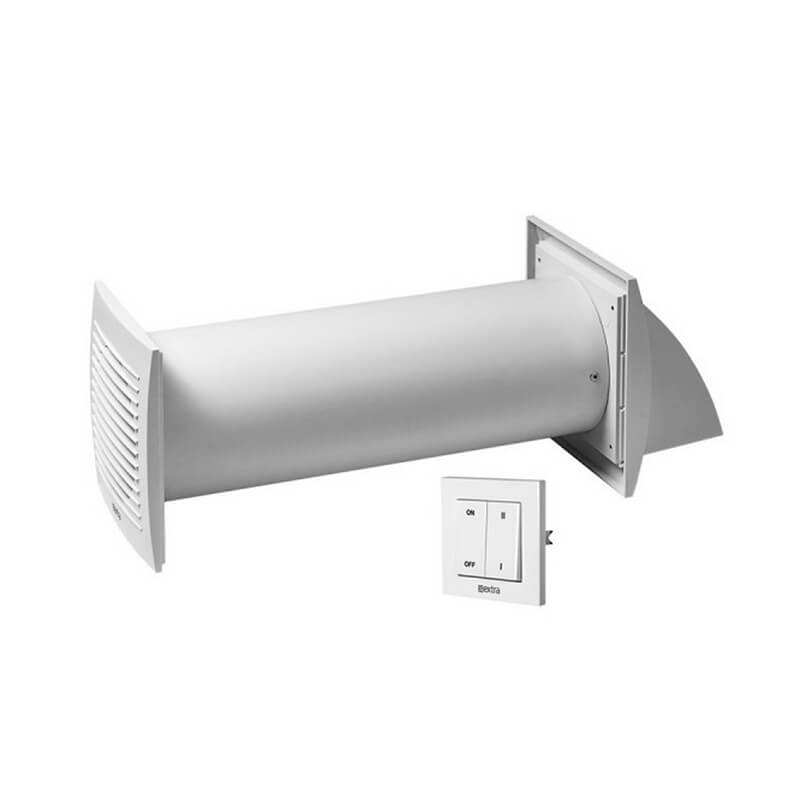

Europlast heat recovery unit with switch Ø100

Description

The unit is designed for continuous indoor air exchange. The device is equipped with a regenerator that collects heat energy from the exhaust air and warms the fresh air entering the room, thus ensuring minimum heat loss. This device is designed for continuous operation.

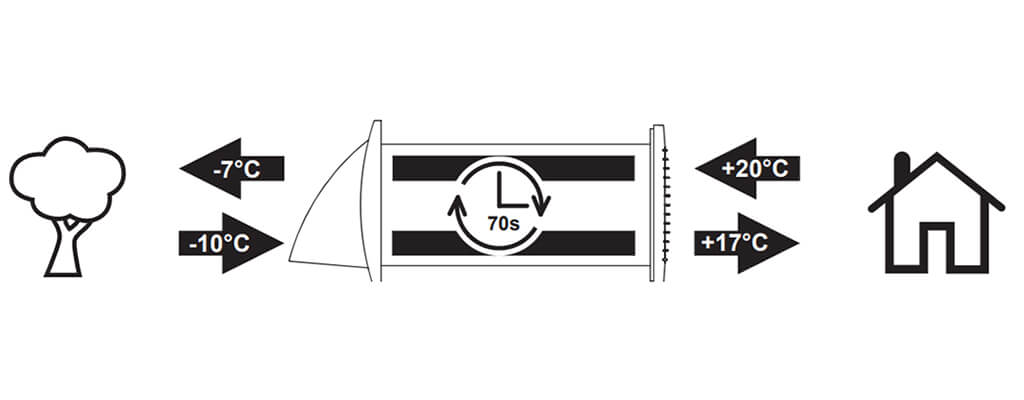

The heat recovery unit cycle consists of two parts:

• In extract mode, contaminated warm air is exhausted from the room. As the air passes through the regenerator, it warms up. After 70 seconds, when the regenerator has accumulated heat, the fan switches to supply mode.
• In supply mode, the fresh cold air flowing through the regenerator warms up to room temperature. After 70 seconds, when the regenerator has cooled down, the fan switches to extract mode.

A control switch is included to switch the device on/off and switch speeds.

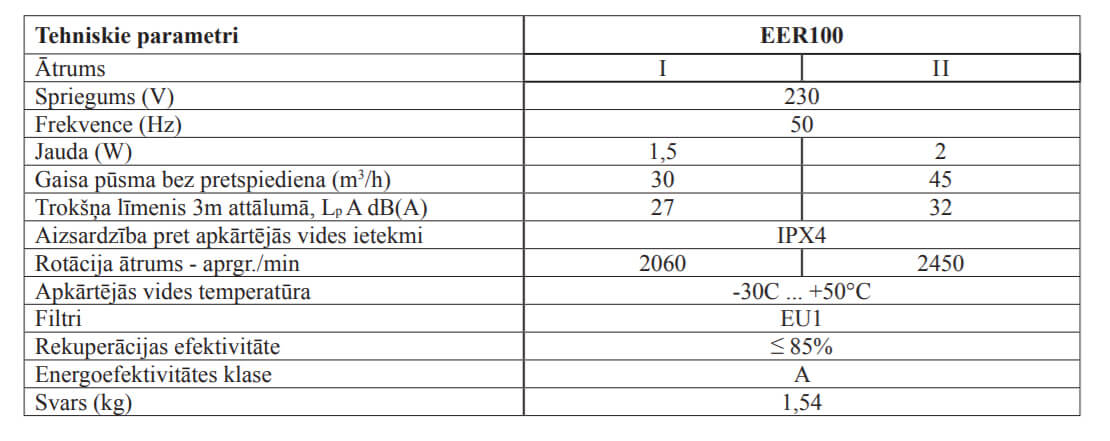

Technical specifications

EER100S:

• Speed - 1/2
• Voltage - 230 V
• Frequency - 50 Hz
• Power - 1.5 W / 2 W
• Air flow without back pressure - 30 m3/h / 45 m3/h
• Noise level - 27 dB / 32 dB
• Protection against environmental influences - IPX4
• Rotation speed - rpm - 2060 / 2450
• Ambient temperature - -30°C - +50°C
• Filters - EU1
• Heat recovery efficiency - ≤85%
• Energy efficiency class - A
