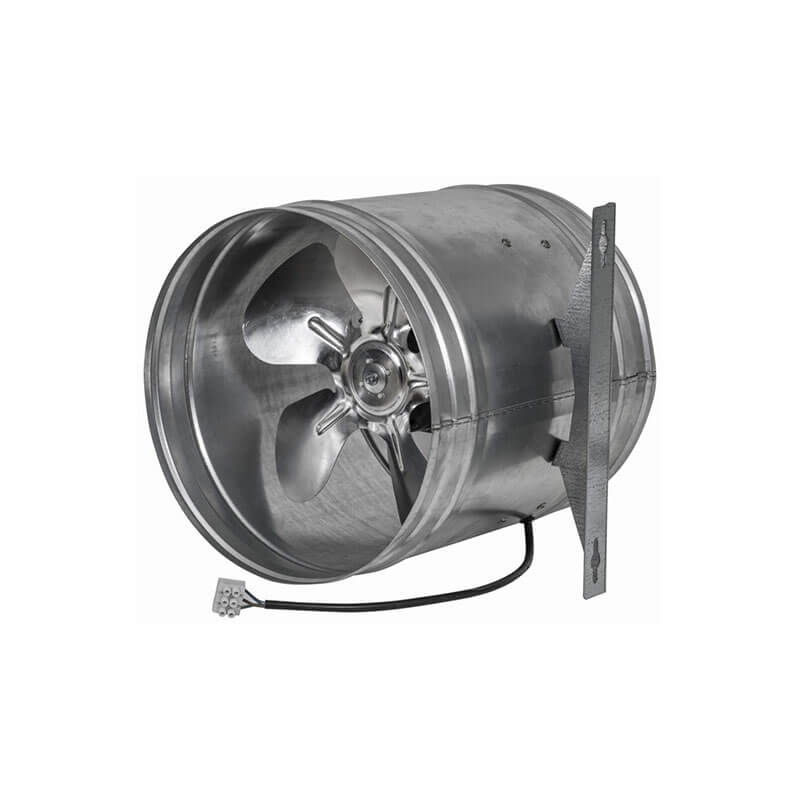

  • Europlast ZKM160 ventilator for ducts
  • Europlast ZKM200 fan for ducts
  • Europlast ZKM250 ventilator for pipes
  • Europlast ZKM315 fan for pipes

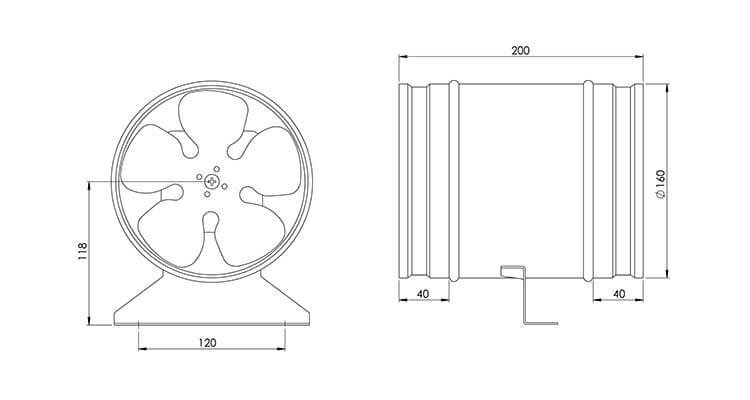

  • Europlast ZKM160 duct ventilator dimensions

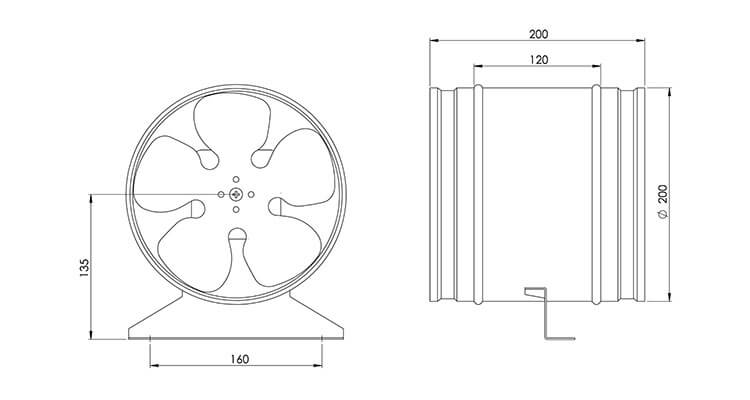

  • Europlast ZKM200 pipe ventilator dimensions

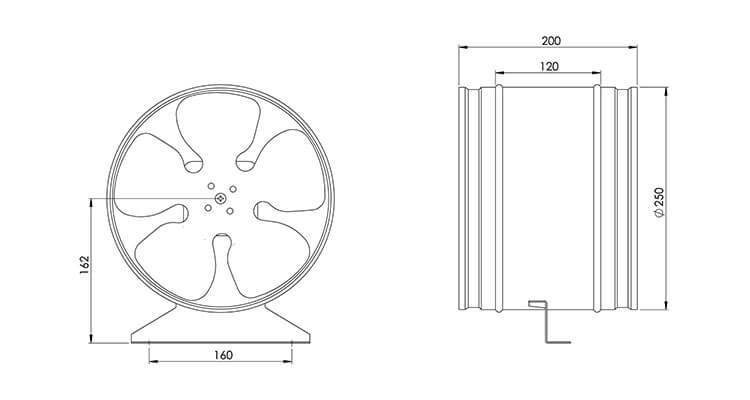

  • Europlast ZKM250 duct fan dimensions
1 of 7

Europlast

Europlast duct low-pressure fan Ø160, Ø200, Ø250, Ø315

Regular price €39,20 EUR
Regular price Sale price €39,20 EUR
Tax included. Shipping calculated at checkout.
Description

Europlast industrial low pressure duct fan.

  • Galvanised metal housing.
  • Speed control capability if you get the Europlast AR 1.5 (optional) electronic speed controller.
  • It can be placed in any position, indoors, in all types of ducts: metal, flexible, plastic, etc.
  • The mounting base is included.
  • Operating temperature range from 0 °C to 40 °C.
  • IPX4
  • 230V-50Hz single phase.

Not suitable for contaminated air, volatile or explosive gases!

    Technical specifications

    ZKM160:

    183 m3/h, 21W

    ZKM200:

    340 m3/h, 29W

    ZKM250:

    800 m3/h, 70W

    ZKM315:

    1325 m3/h, 110W

      Ø160 Dimensions, cm (L x W x H): 20 x 16 x 16
      Ø200 Dimensions, cm (L x W x H): 20 x 20 x 20
      Ø250 Dimensions, cm (L x W x H): 20 x 25 x 25
      Ø315 Dimensions, cm (L x W x H): 20 x 31.5 x 31.5
      Weight 160 / 200 / 250 / 315, g: 1720 / 2200 / 3070 / 4020
