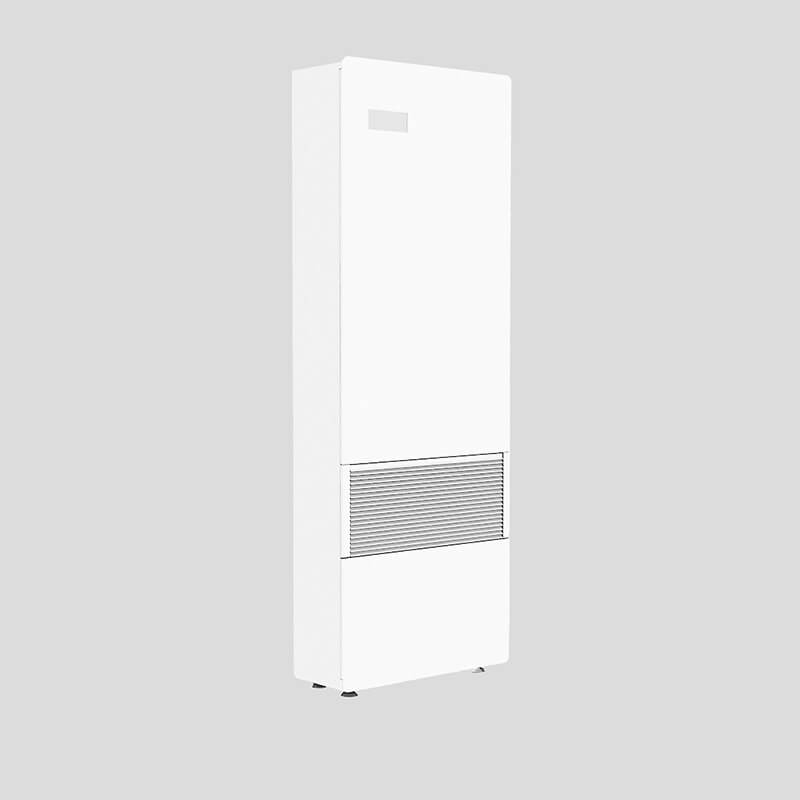

2.0 RINNOVA VERTICAL 30 Thermodynamic heat recovery ventilation unit

Description

Thermodynamic heat recovery ventilation unit 2.0 RINNOVA VERTICAL 30 with heating and cooling function, integrated air quality, humidity and temperature sensors.

It is necessary to improve indoor air quality especially in crowded spaces like public stores, offices, schools. Simply by opening windows is not enough and not comfortable, because mostly the air is polluted. That is why 2.0 RINNOVA Thermodynamic heat recovery unit is safe and easy-to-use, by one press the outdoor air is filtered and flowed right into indoors.

Outdoor air is the best solution to reduce indoor pollutants like viruses, cleaning products, dust VOC, CO2, etc.

Continuous air renewal.

Easy to install

1. Make two ( Ø 162mm) holes in the outer wall
2. Install the unit
3. Connect the power supply

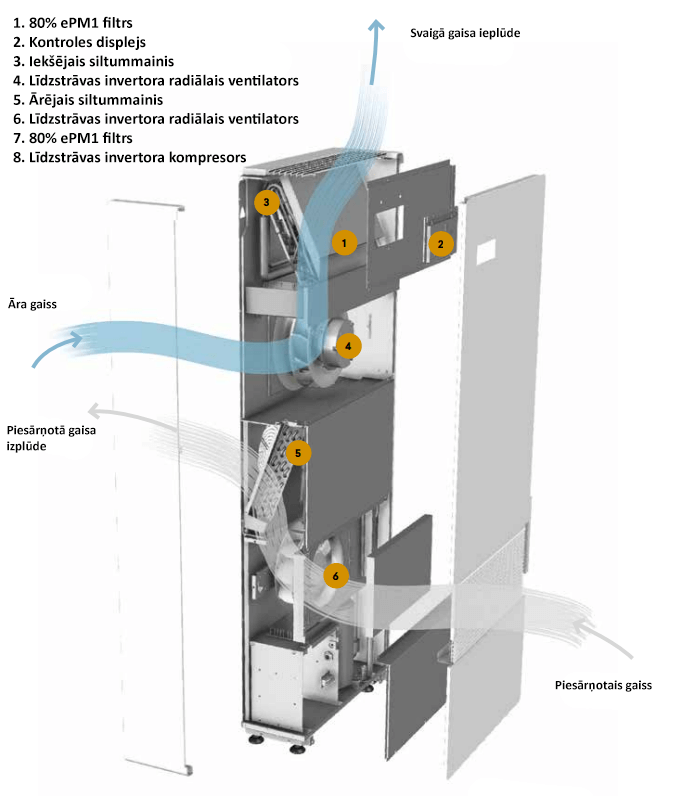

The thermodynamic heat recovery

• Complete and safe separation between the exhaust air and the fresh intake air;
• Thermodynamic recovery takes heat from stale air and transfers it to the fresh intake air;
• In most severe conditions (e.g. external T. -5 °C) the fresh intake air is at the same temperature as the extracted air, 20 °C;
• At middle conditions (e.g. external T. 15 °C) the fresh intake air is warmer and contributes to the heating of the room. Similarly, this also happens for summer cooling.

FEATURES

VERTICAL AIR FLOW

Nominal fresh air flow 320 m3/h. For rooms up to 12 people (25 m3/h per person, example referred to the fresh air intake flow rate for school environments according to UNI 10339)

AIR QUALITY CONTROL

Through the CO2, VOC, temperature and humidity sensors, it automatically adjusts the operation of the unit.

FRESH AND PURIFIED AIR

Renewal air and filtration air, with efficiency ePM1 80% filters.

(UV-C LAMP Option)

DC INVERTER COMPRESSOR

Maximum comfort with the lower consumption and quiet operation.

CONTROL

• Integrated touch-screen on device;
• Handset control;
• iOS and Android app;
• Wall-mounted control (optional) - Modbus (Black / White), WiFi (Black / White).

Standard supply:

• 2.0 RINNOVA VERTICAL 30;
• soft touch control display on the unit with integrated WIFI;
• handset remote control;
• installation template;
• wall fixing bracket;
• DN 160 external grilles kit, internal flanges and plastic protection film;
• external anti bypass covers;
• adjustable feet.
